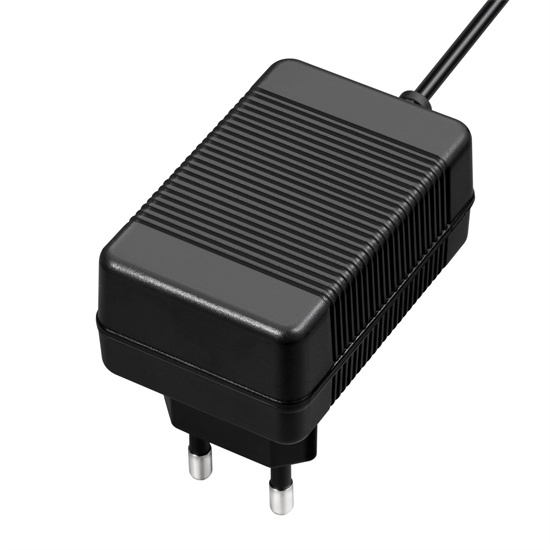

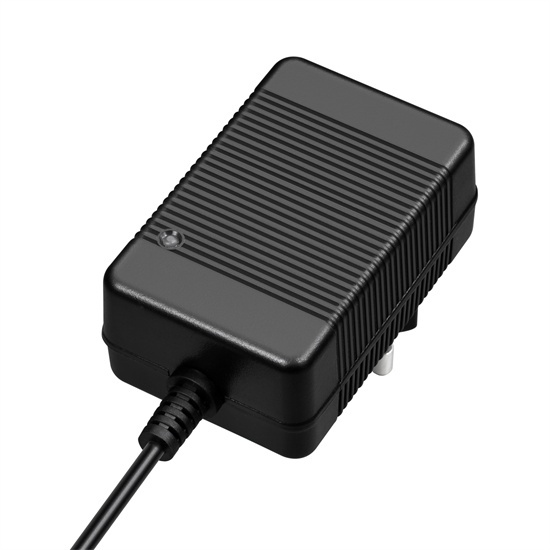

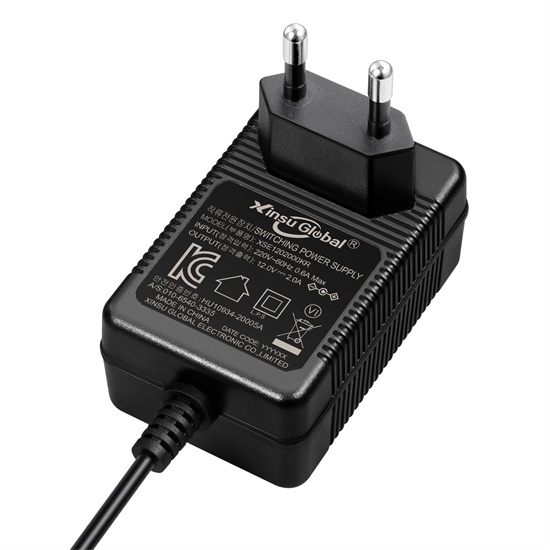

Korea KC KCC electric sprayer li-ion battery charger 12.6V 2A
Korea KC KCC electric sprayer li-ion battery charger 12.6V 2A Korea KC KCC electric sprayer li-ion battery charger 12.6V 2A Korea KC KCC electric sprayer li-ion battery charger 12.6V 2A
Product name : Korea KC KCC electric sprayer li-ion battery charger 12.6V 2A
Product No. : XSG1262000
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 1. Korea KC KCC electric sprayer li-ion battery charger 12.6V 2A:
KC KCC certification 11.1V 3 cells charger output 12.6 Volt 2amp used for electric sprayer.etc

2. Electrical Performance:
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1,J61558
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024,EN55020
EN61000, EN55014
KC Korea K60950-1
SAA/RCM Australia AS/NZS 60950













3.Input Feature:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:0.6A
Inrush Current: 35A
Efficiency higher than 82.4%,No-load input power dissipation 0.3W


4.Output Feature:Output 12.6V 2A, 3 stage trickle li-ion battery charger
Charging Status Charging Stage Output current Output voltage LED indicator

Charging
Constant Current 2A 7.5V-12.6V 红灯
Constant Voltage 2A->0.2A 12.6V 红灯
 Fully charge Trickle Charging 0.2A->0 12.6V 绿灯

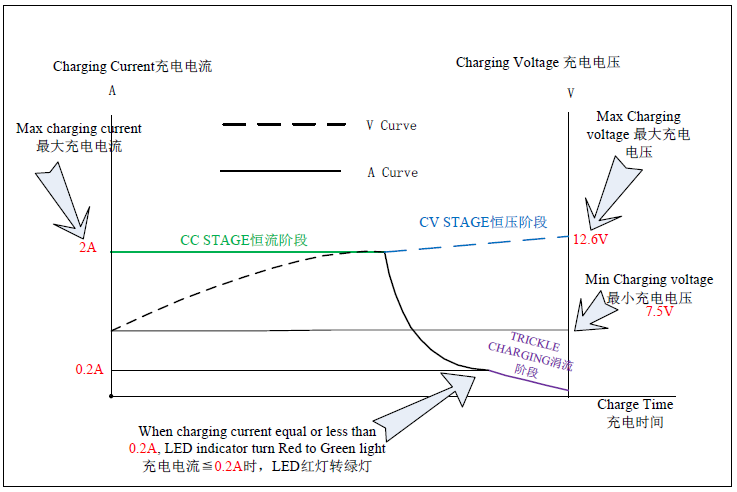

5. Charging Curve
12.6V 2A charger
6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)

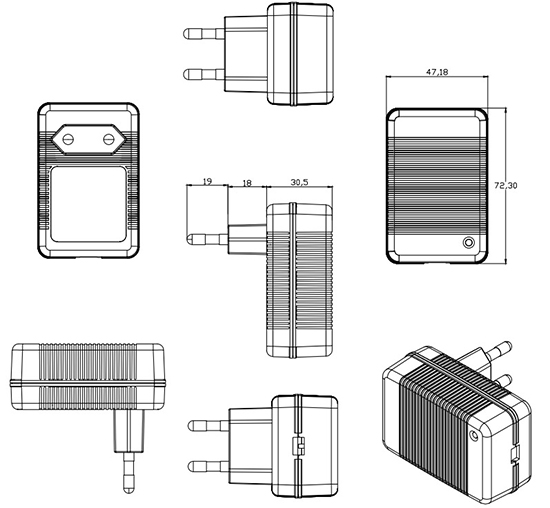

7. Dimensions:L72.3*W47.1*H30.5mm






Xinsu Global Electronics 12.6V lithium battery charger, output current 0.3A to 10A multiple output options are available. Has UL, cUL, FCC, PSE, CE, GS, SAA, RCM, C-tick, KC, CCC and other certifications.
Commonly used 12.6V lithium battery chargers: 12.6V0.5A charger, 12.6V 1A charger, 12.6V 1.5A charger, 12.6V 2A charger, 12.6V 2.5A charger, 12.6V 3A charger, 12.6V 5A charger
12.6V 8A charger, 12.6V 10A charger
Please send emails for more details:
