UL CUL PSE CE GS SAA KC CCC 12.6V Li-ion battery 5A AC charger
UL CUL PSE CE GS SAA KC CCC 12.6V Li-ion battery 5A AC charger UL CUL PSE CE GS SAA KC CCC 12.6V Li-ion battery 5A AC charger UL CUL PSE CE GS SAA KC CCC 12.6V Li-ion battery 5A AC charger UL CUL PSE CE GS SAA KC CCC 12.6V Li-ion battery 5A AC charger
Product name : UL CUL PSE CE GS SAA KC CCC 12.6V Li-ion battery 5A AC charger
Product No. : XSG1265000
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 1. Smart 12.6V 5A Li-ion battery charger adapter:
UL CUL PSE CE GS SAA KC CCC 12.6V Li-ion battery 5A AC charger adapter used for 3s lithium ion battery pack, underwater UAV robot, portable power station, Electric gardon tools.etc

2. Electrical Performance:
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1,J61558
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024,EN55020
EN61000, EN55014
KC Korea K60950-1
SAA/RCM Australia AS/NZS 60950













3.Input Feature:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:1.3A
Inrush Current: 60A
Efficiency higher than 87%,No-load input power dissipation 0.5W


4.Output Feature:Output 12.6V Li-ion battery 5A AC charger adapter
Charging Status Charging Stage Output current Output voltage LED indicator

Charging
Constant Current 5A 7.5V-12.6V 红灯
Constant Voltage 5A->0.5A 12.6V 红灯
 Fully charge Trickle Charging 0.5A->0 12.6V 绿灯

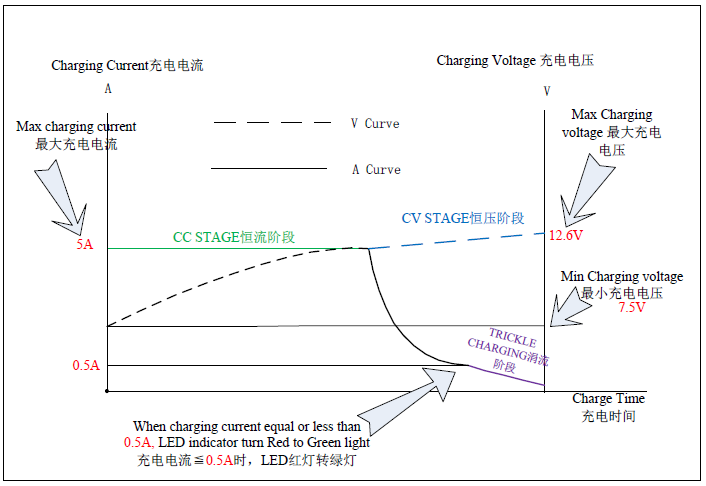

5. Charging Curve

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)


7. Dimensions:L116*W52*H34mm
