UL PSE CE GS SAA FAN FREE 12.6V 10A Lithium ion battery AC charger adapter
UL PSE CE GS SAA FAN FREE 12.6V 10A Lithium ion battery AC charger adapter UL PSE CE GS SAA FAN FREE 12.6V 10A Lithium ion battery AC charger adapter UL PSE CE GS SAA FAN FREE 12.6V 10A Lithium ion battery AC charger adapter
Product name : UL PSE CE GS SAA FAN FREE 12.6V 10A Lithium ion battery AC charger adapter
Product No. : XSG12610000
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 1.UL PSE CE GS SAA FAN FREE 12.6V 10A Lithium ion battery AC charger adapter
UL CUL PSE CE GS SAA KC CCC 12.6V Li-ion battery 10A AC charger adapter used for 3s lithium ion battery pack, battery power tools.etc, without a fan inside, more easy to carry

2. Electrical Performance:
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1,J61558
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024,EN55020
EN61000, EN55014
KC Korea K60950-1
SAA/RCM Australia AS/NZS 60950













3.Input Feature:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:3A
Inrush Current: 60A
Efficiency higher than 87%,No-load input power dissipation 0.5W


4.Output Feature:12.6V10A lithium battery ac charger adapter
Charging Status Charging Stage Output current Output voltage LED indicator

Charging
Constant Current 10A 7.5V-12.6V 红灯
Constant Voltage 10A->1A 12.6V 红灯
 Fully charge Trickle Charging 1A->0 12.6V 绿灯

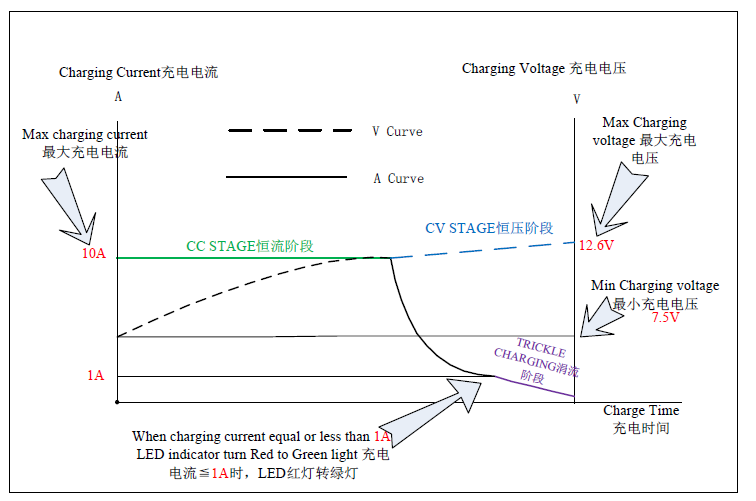

5. Charging Curve

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)


7. Dimensions:L176*W80*H47mm

8.Other 12.6V li-ion chargers
MODEL INPUT OUTPUT
VAC W V mA
XSG1260300 100~240 3.8 12.6 300
XSG1260400 100~240 5.0 12.6 400
XSG1260500 100~240 6.3 12.6 500
XSG1260600 100~240 7.6 12.6 600
XSG1260700 100~240 8.8 12.6 700
XSG1260800 100~240 10.1 12.6 800
XSG1260900 100~240 11.3 12.6 900
XSG1261000 100~240 12.6 12.6 1000
XSG1261200 100~240 15.1 12.6 1200
XSG1261500 100~240 18.9 12.6 1500
XSG1261800 100~240 22.7 12.6 1800
XSG1262000 100~240 25.2 12.6 2000
XSG1262500 100~240 31.5 12.6 2500
XSG1263000 100~240 37.8 12.6 3000
XSG1263500 100~240 44.1 12.6 3500
XSG1264000 100~240 50.4 12.6 4000
XSG1264500 100~240 56.7 12.6 4500
XSG1265000 100~240 63.0 12.6 5000
XSG1265500 100~240 69.3 12.6 5500
XSG1266000 100~240 75.6 12.6 6000
XSG1266500 100~240 81.9 12.6 6500
XSG1267000 100~240 88.2 12.6 7000
XSG1267500 100~240 94.5 12.6 7500
XSG1268000 100~240 100.8 12.6 8000
XSG1268500 100~240 107.1 12.6 8500
XSG1269000 100240 113.4 12.6 9000
XSG1269500 100~240 119.7 12.6 9500
XSG12610000 100~240 126.0 12.6 10000
XSG12611000 100-240 138.6 12.6 11000
