UL PSE CE GS SAA KC 29.4V electric scooter skateboard fast li-ion charger 7A
UL PSE CE GS SAA KC 29.4V electric scooter skateboard fast li-ion charger 7A UL PSE CE GS SAA KC 29.4V electric scooter skateboard fast li-ion charger 7A UL PSE CE GS SAA KC 29.4V electric scooter skateboard fast li-ion charger 7A UL PSE CE GS SAA KC 29.4V electric scooter skateboard fast li-ion charger 7A
Product name : UL PSE CE GS SAA KC 29.4V electric scooter skateboard fast li-ion charger 7A
Product No. : XSG2947000
             [Next Product]→
Online Inquiry

  Details:
 1.UL PSE CE GS SAA KC 29.4V electric scooter skateboard fast li-ion charger 7A
Electric skateboard scooter 29.4V 7A AC charger adapter used for 7s lithium ion battery pack, battery power tools, robot, electric scooter bike, fast charger

2. Electrical Performance:
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1,J61558
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024,EN55020
EN61000, EN55014
KC Korea K60950-1
SAA/RCM Australia AS/NZS 60950













3.Input Feature:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:3A
Inrush Current: 60A
Efficiency higher than 87%,No-load input power dissipation 0.5W


4.Output Feature:29.4V7A lithium battery ac charger adapter
Charging Status Charging Stage Output current Output voltage LED indicator

Charging
Constant Current 7A 17.5V-29.4V 红灯
Constant Voltage 1A->0.7A 29.4V 红灯
 Fully charge Trickle Charging 0.7A->0 29.4V 绿灯

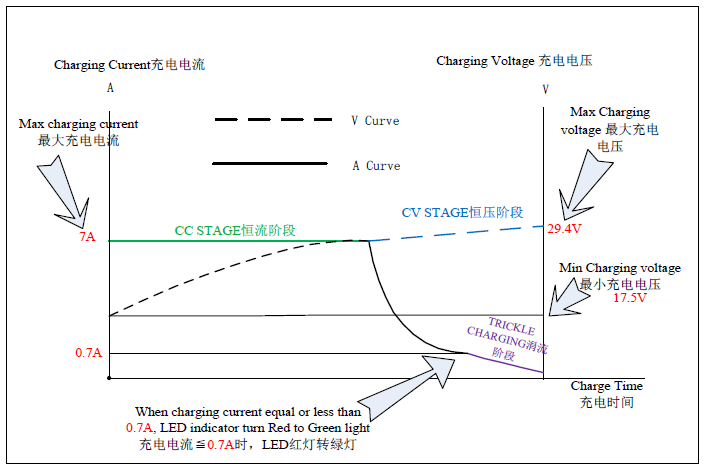

5. Charging Curve

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)

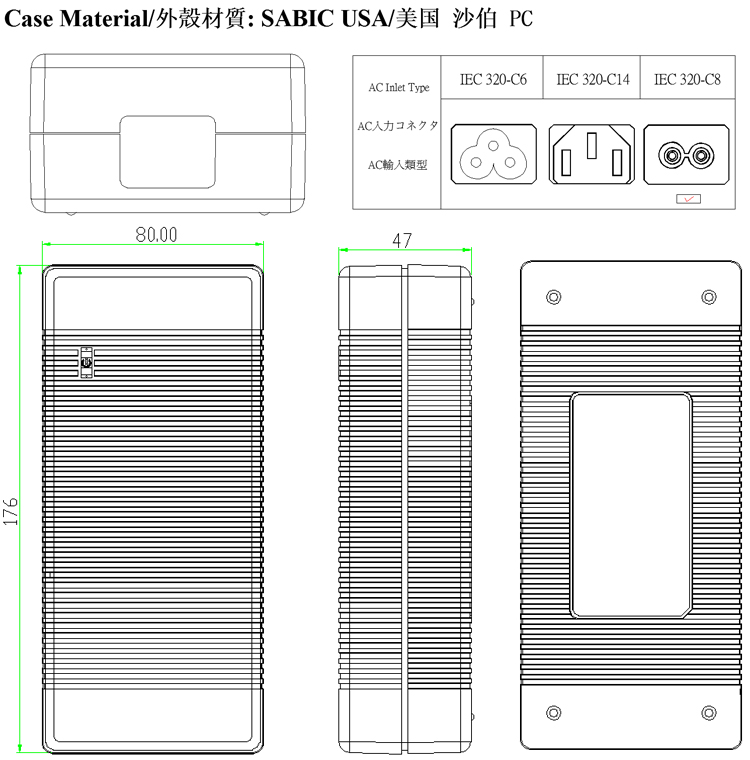

7. Dimensions:L176*W80*H47mm

8. Other 29.4V chargers
MODEL INPUT OUTPUT
VAC W V mA
XSG2940300 100~240 8.8 29.4 300
XSG2940400 100~240 11.8 29.4 400
XSG2940500 100~240 14.7 29.4 500
XSG2940600 100~240 17.6 29.4 600
XSG2940700 100~240 20.6 29.4 700
XSG2940800 100~240 23.5 29.4 800
XSG2940900 100~240 26.5 29.4 900
XSG2941000 100~240 29.4 29.4 1000
XSG2941250 100~240 36.8 29.4 1250
XSG2941500 100~240 44.1 29.4 1500
XSG2941750 100~240 51.5 29.4 1750
XSG2942000 100~240 58.8 29.4 2000
XSG2942500 100~240 73.5 29.4 2500
XSG2943000 100~240 88.2 29.4 3000
XSG2943500 100~240 102.9 29.4 3500
XSG2944000 100~240 117.6 29.4 4000
XSG2944500 100~240 132.3 29.4 4500
XSG2945000 100~240 147.0 29.4 5000
XSG2945500 100~240 161.7 29.4 5500
XSG2946000 100~240 176.4 29.4 6000
XSG2946500 100~240 191.1 29.4 6500
XSG2947000 100~240 205.8 29.4 7000
XSG2947450 100~240 219.0 29.4 7450

Xinsu 29.4V charger,used for the 7S 24V li-ion battery pack charging, certificated by UL, cUL, FCC, PSE, CE, GS, SAA, KC, PSB.
Private mode, fish-scale design helps more easy for heat dissipation. for the electric bikes, electric robot, portable power station.etc
Please email us for product details!
