Product name : North America UL Japan PSE Europe CE GS Korea KC certificated 24V Lithium ion battery charger 29.4V 5A
Product No. : XSG2945000
|
| Details: | |||||||||||||||||||||||||||||||||||||||||||

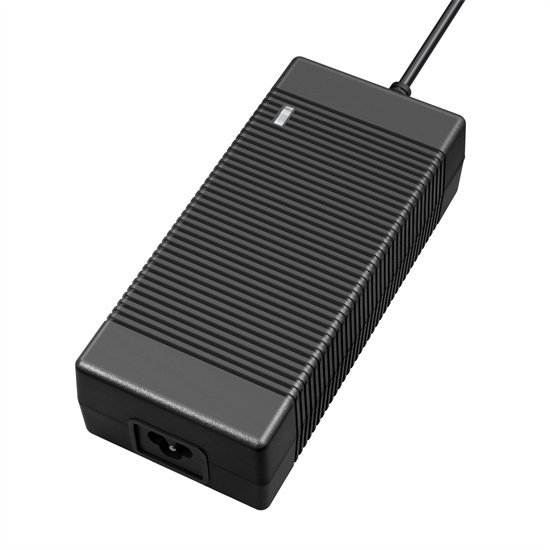

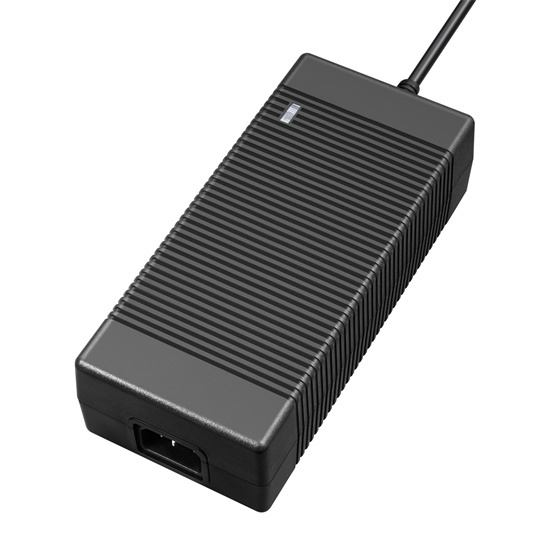

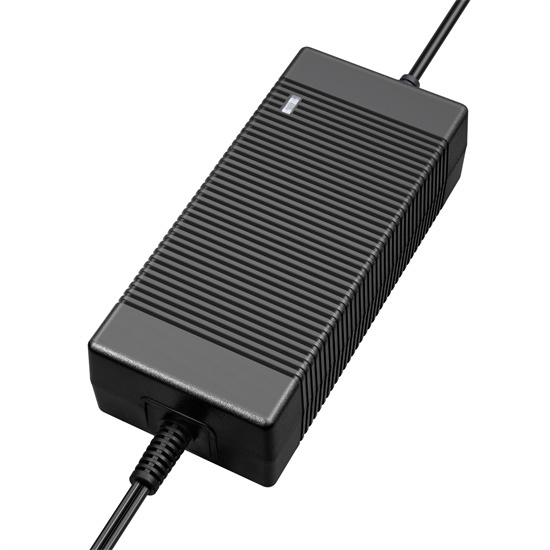

1.North America UL Japan PSE Europe CE GS Korea KC certificated 24V Lithium ion battery charger 29.4V 5A
24V Li-ion battery 29.4V 5A AC charger adapter used for 7s lithium ion battery pack, medical robot, battery power tools.etc, no fan inside, high efficiency, more easy to carry 2. Electrical Performance： Certificated by the safety certifications below:
3.Input Feature： Input Voltage： 90Vac-264Vac Rated Input Voltage： 100Vac-240Vac Input Frequence：47Hz-63Hz Input Current：3A Inrush Current： 60A Efficiency higher than 87%，No-load input power dissipation 0.5W 4.Output Feature：29.4V5A lithium battery ac charger adapter

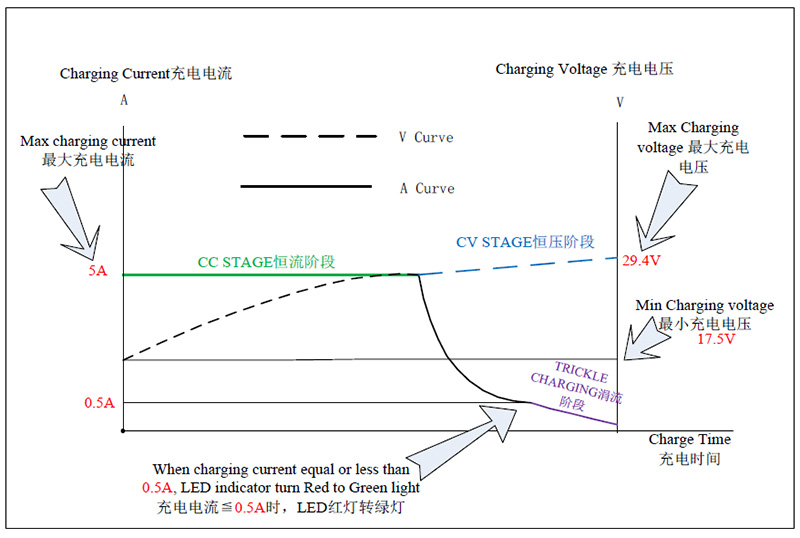

5. Charging Curve  6. Protection Feature Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional) 7. Dimensions：L176*W80*H47mm  |
