PSB UL CUL KC SAA CCC PSE 24V Lead-Acid battery charger 2A
PSB UL CUL KC SAA CCC PSE 24V Lead-Acid battery charger 2A PSB UL CUL KC SAA CCC PSE 24V Lead-Acid battery charger 2A PSB UL CUL KC SAA CCC PSE 24V Lead-Acid battery charger 2A
Product name : PSB UL CUL KC SAA CCC PSE 24V Lead-Acid battery charger 2A
Product No. : XSG2922000
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 1. PSB UL CUL KC SAA CCC PSE 24V Lead-Acid battery charger 2A:
24V 2A Lead-acid battery charger adapter used for 24V lead-acid battery pack, electric scooter, electric wheelchair, Portable energy storage equipments.etc

2. Electrical Performance:
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1,J61558
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024,EN55020
EN61000, EN55014
KC Korea K60950-1
SAA/RCM Australia AS/NZS 60950
PSB Singapore IEC-61558-2-16














3.Input Feature:

Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:1.3A
Inrush Current: 60A
Efficiency higher than 87%,No-load input power dissipation 0.5W


4.Output Feature:Output 29.42 volt 2 amp Li-ion battery AC charger adapter
Charging Status Charging Stage Output current Output voltage LED indicator

Charging
Constant Current 2A 18V-29.2V 红灯
Constant Voltage 2A->0.6A 29.2V 红灯
 Fully charge Trickle Charging 0.6A->0 29.2V 绿灯

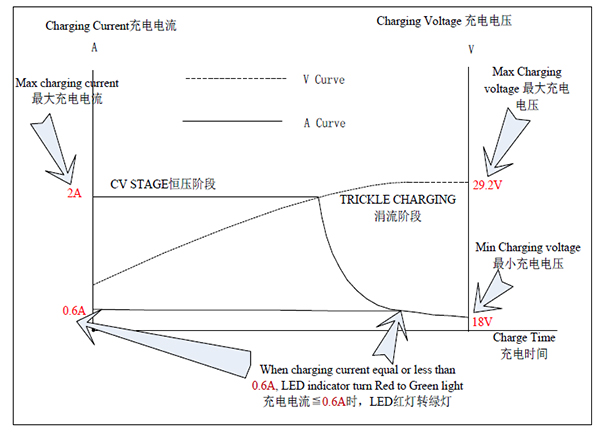

5. Charging Curve

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional), Anti-backflow protection

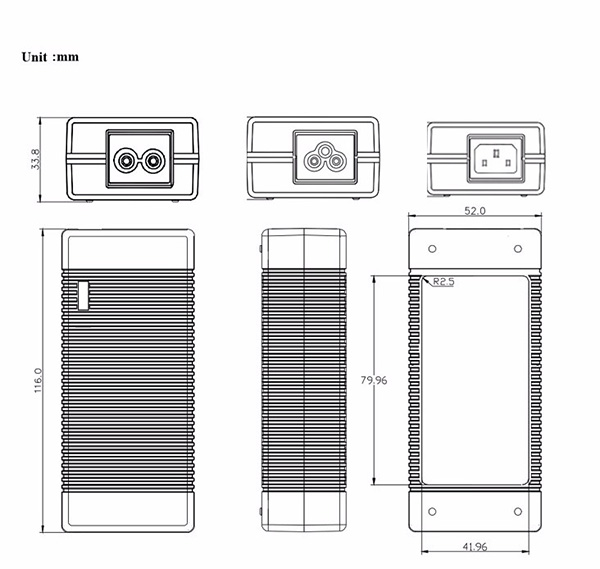

7. Dimensions:L116*W52*H34mm
