XSG2926000 KC KCC 24V6A Korea lead-acid LiFePO4 battery charger
XSG2926000 KC KCC 24V6A Korea lead-acid LiFePO4 battery charger XSG2926000 KC KCC 24V6A Korea lead-acid LiFePO4 battery charger XSG2926000 KC KCC 24V6A Korea lead-acid LiFePO4 battery charger
Product name : XSG2926000 KC KCC 24V6A Korea lead-acid LiFePO4 battery charger
Product No. : XSG2926000
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 1.XSG2926000 KC KCC 24V6A Korea lead-acid LiFePO4 battery charger
24V Lead-acid battery 24V 6A AC charger adapter used for 24V lead-acid battery pack, medical robot, battery power tools.etc, no fan inside, high efficiency, more easy to carry

2. Electrical Performance:
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1,J61558
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024,EN55020
EN61000, EN55014
KC Korea K60950-1
SAA/RCM Australia AS/NZS 60950













3.Input Feature:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:3A
Inrush Current: 60A
Efficiency higher than 87%,No-load input power dissipation 0.5W


4.Output Feature:24V6A lead-acid battery ac charger adapter
Charging Status Charging Stage Output current Output voltage LED indicator

Charging
Constant Current 6A 18V-29.2V 红灯
Constant Voltage 6A->2A 29.2V 红灯
 Fully charge Trickle Charging 2A->0 29.2V 绿灯

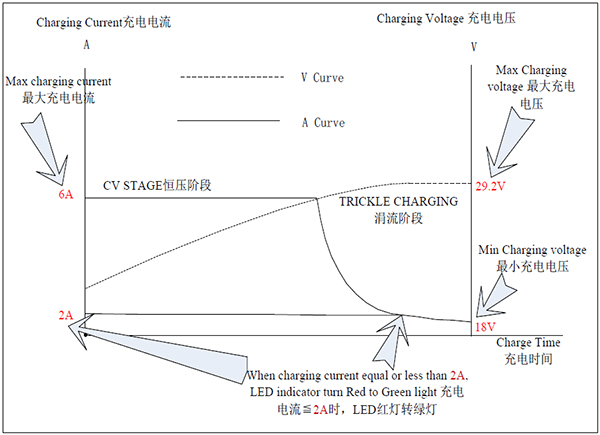

5. Charging Curve

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)


7. Dimensions:L176*W80*H47mm
