America Europe Australia Korea Japan wall ac plug 8.4V 1A Li-ion charger adapter
America Europe Australia Korea Japan wall ac plug 8.4V 1A Li-ion charger adapter America Europe Australia Korea Japan wall ac plug 8.4V 1A Li-ion charger adapter America Europe Australia Korea Japan wall ac plug 8.4V 1A Li-ion charger adapter
Product name : America Europe Australia Korea Japan wall ac plug 8.4V 1A Li-ion charger adapter
Product No. : XSG0841000US
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 1. America Europe Australia Korea Japan wall ac plug 8.4V 1A Li-ion charger adapter:
8.4V 1A lithium battery charger adapter used for 7.4V 2S li-ion battery pack, camera battery.etc

2. Electrical Performance:
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1,J61558
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024,EN55020
EN61000, EN55014
KC Korea K60950-1
SAA/RCM Australia AS/NZS 60950
PSB Singapore IEC-61558-2-16














3.Input Feature:

Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:0.6A
Inrush Current: 35A
Efficiency higher than 75.5%,No-load input power dissipation 0.3W


4.Output Feature:Output 8.4 volt 1 amp Li-ion battery AC charger adapter
Charging Status Charging Stage Output current Output voltage LED indicator

Charging
Constant Current 1A 5V-8.4V 红灯
Constant Voltage 1A->0.2A 8.4V 红灯
 Fully charge Trickle Charging 0.2A->0 8.4V 绿灯

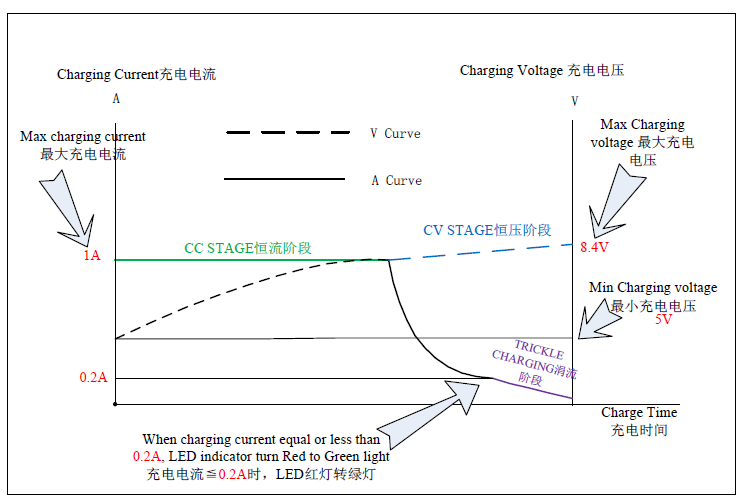

5. Charging Curve
8.4V 1A charger
6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional), Anti-backflow protection


7. Dimensions:L63.9*W37.7*H27.9mm
8.4v 1a ul charger
Xinsu Global li-ion battery 8.4V1A chargers have got the America UL,cUL. Europe CE, GS, United Kingdom CE, Australia SAA, RCM, C-tick, Korea KC KCC
various safety certifications for universal markets.
Short lead time with high quality, full safety certifications advantages. widely used for the 7.4V li-ion battery pack charging.
