Products > Li ion Battery Charger > 48V Li-ion battery charger 54.6V > safety certifiation 54.6V 4A electric bicycle scooter 13s lithium ion battery charger adapter
safety certifiation 54.6V 4A electric bicycle scooter 13s lithium ion battery charger adapter
safety certifiation 54.6V 4A electric bicycle scooter 13s lithium ion battery charger adapter safety certifiation 54.6V 4A electric bicycle scooter 13s lithium ion battery charger adapter safety certifiation 54.6V 4A electric bicycle scooter 13s lithium ion battery charger adapter safety certifiation 54.6V 4A electric bicycle scooter 13s lithium ion battery charger adapter
Product name : safety certifiation 54.6V 4A electric bicycle scooter 13s lithium ion battery charger adapter
Product No. : XSG5463750
←[Previous Product]              [Next Product]→
Online Inquiry

  Details:
 1.safety certifiation 54.6V 4A electric bicycle scooter 13s lithium ion battery charger adapter
XSG5463750 UL PSE CE GS SAA KC AC charger adapter 54.6V 4A used for 13s 48V lithium ion battery pack, medical robot, electric bike scooter.etc, fanless inside, high efficiency, more easy to carry

2. Electrical Performance：
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1，J61558
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024，EN55020
EN61000, EN55014
KC Korea K60950-1
SAA/RCM Australia AS/NZS 60950













3.Input Feature：
Input Voltage： 90Vac-264Vac
Rated Input Voltage： 100Vac-240Vac
Input Frequence：47Hz-63Hz
Input Current：3A
Inrush Current： 60A
Efficiency higher than 87%，No-load input power dissipation 0.5W

4.Output Feature：54.6V4A lithium ion battery ac charger adapter
Charging Status Charging Stage Output current Output voltage LED indicator

Charging		 Constant Current 4A 32.5V-54.6V 红灯
Constant Voltage 4A->0.4A 54.6V 红灯
 Fully charge Trickle Charging 0.4A->0 54.6V 绿灯

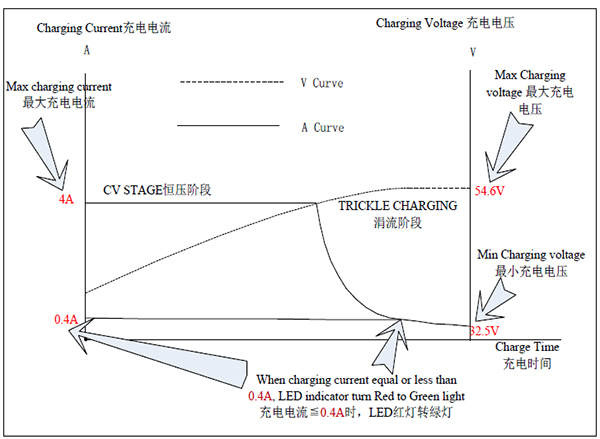

5. Charging Curve

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)


7. Dimensions：L176*W80*H47mm

8. Other 54.6V chargers
MODEL INPUT OUTPUT
VAC W V mA
XSG5460300 100～240 16.4 54.6 300
XSG5460400 100～240 21.8 54.6 400
XSG5460500 100～240 27.3 54.6 500
XSG5460600 100～240 32.8 54.6 600
XSG5460700 100～240 38.2 54.6 700
XSG5460800 100～240 43.7 54.6 800
XSG5460900 100～240 49.1 54.6 900
XSG5461000 100～240 54.6 54.6 1000
XSG5461150 100～240 62.8 54.6 1150
XSG5461250 100～240 68.3 54.6 1250
XSG5461500 100～240 81.9 54.6 1500
XSG5461750 100～240 95.6 54.6 1750
XSG5462000 100～240 109.2 54.6 2000
XSG5462500 100～240 136.5 54.6 2500
XSG5462750 100～240 150.2 54.6 2750
XSG5463000 100～240 163.8 54.6 3000
XSG5463250 100～240 177.5 54.6 3250
XSG5463500 100～240 191.1 54.6 3500
XSG5463750 100～240 204.8 54.6 3750
XSG5464000 100～240 218.4 54.6 4000
