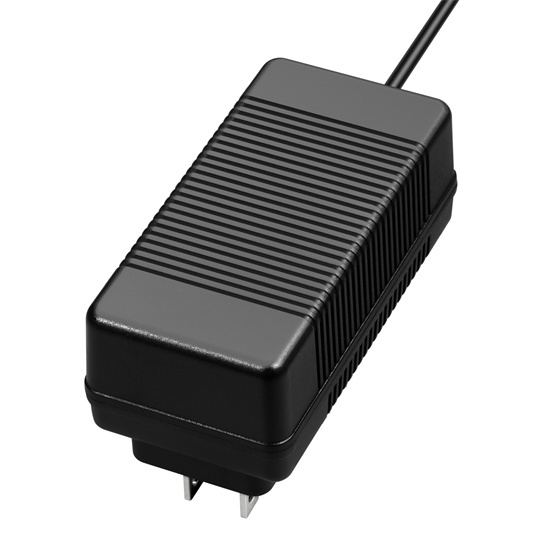

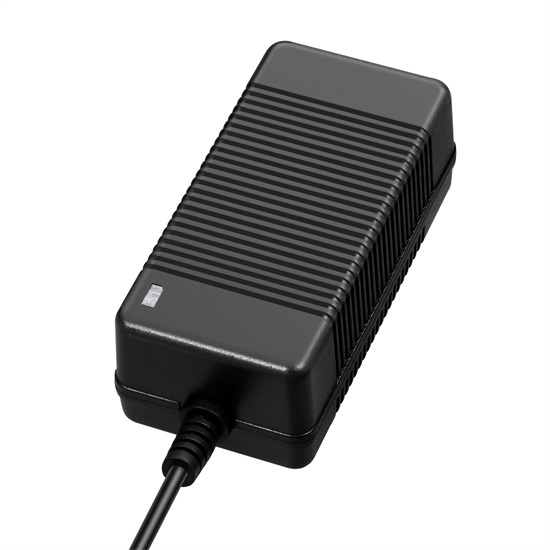

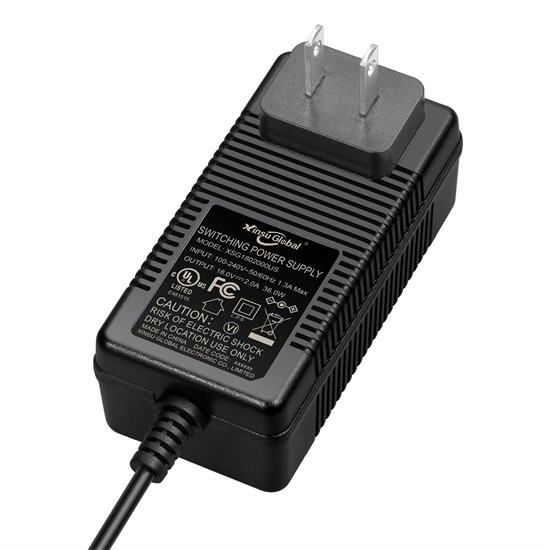

UL CUL CE GS SAA certification li-ion battery charegr adapter 42V1A
UL CUL CE GS SAA certification li-ion battery charegr adapter 42V1A UL CUL CE GS SAA certification li-ion battery charegr adapter 42V1A UL CUL CE GS SAA certification li-ion battery charegr adapter 42V1A
Product name : UL CUL CE GS SAA certification li-ion battery charegr adapter 42V1A
Product No. : XSG4201000US
←[Previous Product]              [Next Product]→
Online Inquiry

  Details:
 1. UL cUL CE GS SAA PSE CCC certification 42V 1A li-ion battery charger:
42V 1A Li-ion battery charger used for 10s li-ion battery pack, intelligent 3 stage charger with trickle mode.

2. Electrical Performance:
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1,J61558
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024,EN55020
EN61000, EN55014
SAA/RCM Australia AS/NZS 60950













3.Input Feature:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:0.6A
Inrush Current: 35A
Efficiency higher than 85.6%,No-load input power dissipation 0.3W


4.Output Feature:Output 12.6V 2A, 3 stage trickle li-ion battery charger
Charging Status Charging Stage Output current Output voltage LED indicator

Charging
Constant Current 1A 25V-42V 红灯
Constant Voltage 1A->0.2A 42V 红灯
 Fully charge Trickle Charging 0.2A->0 42V 绿灯

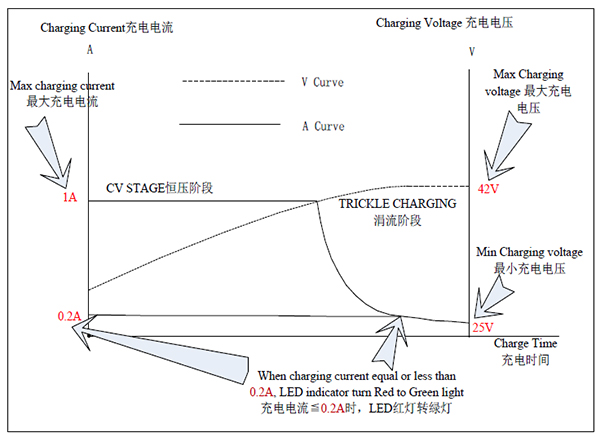

5. Charging Curve

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)

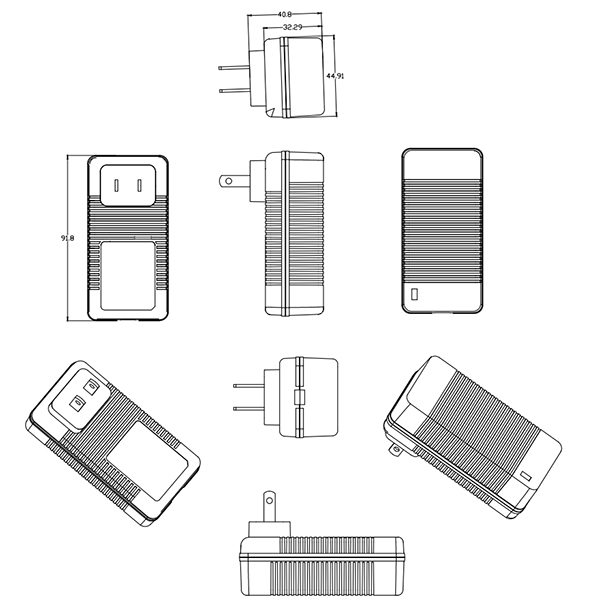

7. Dimensions:L91.8*W44.9*H32.29mm


8.Other 42V battery chargers
MODEL INPUT OUTPUT
VAC W V mA
XSG4200300 100~240 12.6 42 300
XSG4200400 100~240 16.8 42 400
XSG4200500 100~240 21.0 42 500
XSG4200600 100~240 25.2 42 600
XSG4200700 100~240 29.4 42 700
XSG4200800 100~240 33.6 42 800
XSG4200900 100~240 37.8 42 900
XSG4201000 100~240 42.0 42 1000
XSG4201250 100~240 52.5 42 1250
XSG4201500 100~240 63.0 42 1500
XSG4201750 100~240 73.5 42 1750
XSG4202000 100~240 84.0 42 2000
XSG4202250 100~240 94.5 42 2250
XSG4202500 100~240 105.0 42 2500
XSG4203000 100~240 126.0 42 3000
XSG4203500 100~240 147.0 42 3500
XSG4204000 100~240 168.0 42 4000
XSG4204500 100~240 189.0 42 4500
XSG4205000 100~240 210.0 42 5000
