1. Portable ventaliator lithium battery charger 12.6V 16.8V 1A 1.5A：
UL, PSE, CE, GS, SAA, RCM, C-tick, KC 16.8V 1A interchangeable plugs Lithium battery charger adapter used for 14.8V 4S li-ion battery pack, electric power tools.etc
Private moulds with EU, UK, AU, US/JP, KR, IN, CN, ZR, BR, ZA plugs

2. Electrical Performance：
Certificated by the safety certifications below:

Certifications	Country	Safety Standards
UL/CUL	USA/CA	UL/CSA60950-1,UL/CSA62368-1
LVD/GS	Germany	EN60950, EN62368 EN61558, EN60335
PSE	Japan	J-60950-1，J61558
FCC	USA	FCC Part 15 Sub-part B
CE EMC	Europe	EN55032, EN55024，EN55020 EN61000, EN55014
KC	Korea	K60950-1
SAA/RCM	Australia	AS/NZS 60950
PSB	Singapore	IEC-61558-2-16

3.Input Feature：
Input Voltage： 90Vac-264Vac
Rated Input Voltage： 100Vac-240Vac
Input Frequence：47Hz-63Hz
Input Current：0.6A
Inrush Current： 35A
Efficiency higher than 80%，No-load input power dissipation 0.3W

4.Output Feature：Ventaliator charger with Output 16.8 volt 1 amp Li-ion battery AC charger adapter with ten kinds plugs

Charging Status	Charging Stage	Output current	Output voltage	LED indicator
Charging	Constant Current	1A	10V-16.8V	红灯
	Constant Voltage	1A->0.2A	16.8V	红灯
Fully charge	Trickle Charging	0.2A->0	16.8V	绿灯

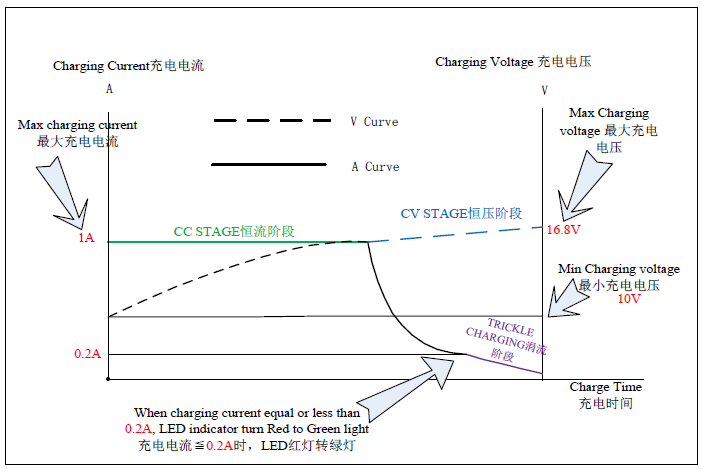

5. Charging Curve

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional), Anti-backflow protection

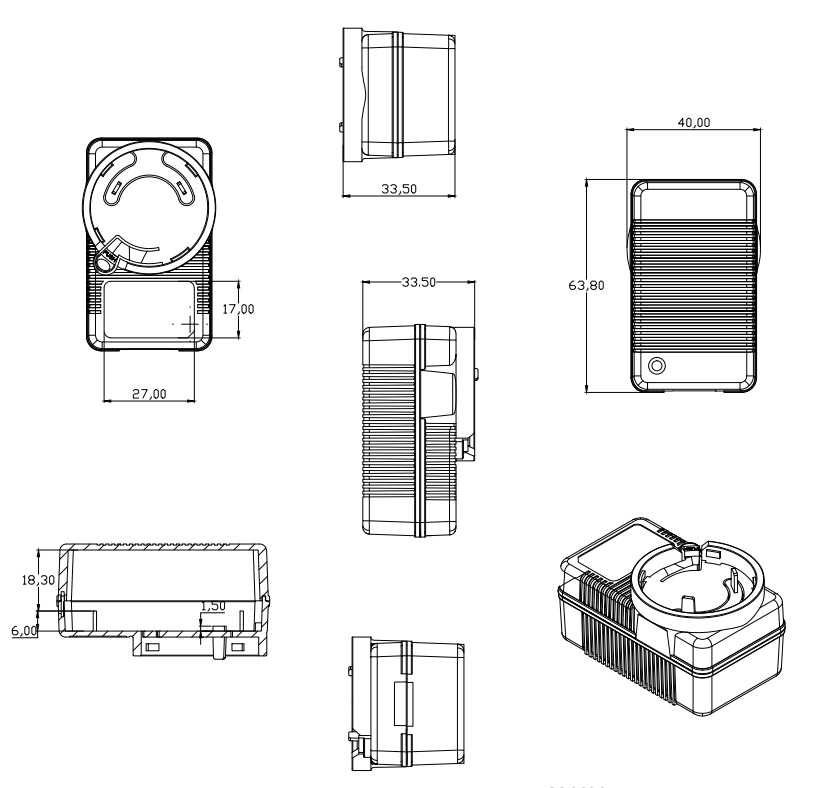

7. Dimensions：L63.8*W40*H33.5mm

8. Other 16.8V chargers

MODEL	INPUT	OUTPUT
	VAC	W	V	mA
XSG1680300	100～240	5.0	16.8	300
XSG1680400	100～240	6.7	16.8	400
XSG1680500	100～240	8.4	16.8	500
XSG1680600	100～240	10.1	16.8	600
XSG1680700	100～240	11.8	16.8	700
XSG1680800	100～240	13.4	16.8	800
XSG1680900	100～240	15.1	16.8	900
XSG1681000	100～240	16.8	16.8	1000
XSG1681200	100～240	20.2	16.8	1200
XSG1681500	100～240	25.2	16.8	1500
XSG1681800	100～240	30.2	16.8	1800
XSG1682000	100～240	33.6	16.8	2000
XSG1682500	100～240	42.0	16.8	2500
XSG1683000	100～240	50.4	16.8	3000
XSG1683500	100～240	58.8	16.8	3500
XSG1683750	100～240	63.0	16.8	3750
XSG1684000	100～240	67.2	16.8	4000
XSG1684500	100～240	75.6	16.8	4500
XSG1685000	100～240	84.0	16.8	5000
XSG1685500	100～240	92.4	16.8	5500
XSG1686000	100～240	100.8	16.8	6000
XSG1686500	100～240	109.2	16.8	6500
XSG1687000	100～240	117.6	16.8	7000
XSG1687500	100～240	126.0	16.8	7500
XSG1688000	100～240	134.4	16.8	8000
XSG1688500	100～240	142.8	16.8	8500
XSG1689000	100～240	151.2	16.8	9000
XSG1689500	100～240	159.6	16.8	9500
XSG16810000	100～240	168.0	16.8	10000
XSG16811000	100-240	184.8	16.8	11000
