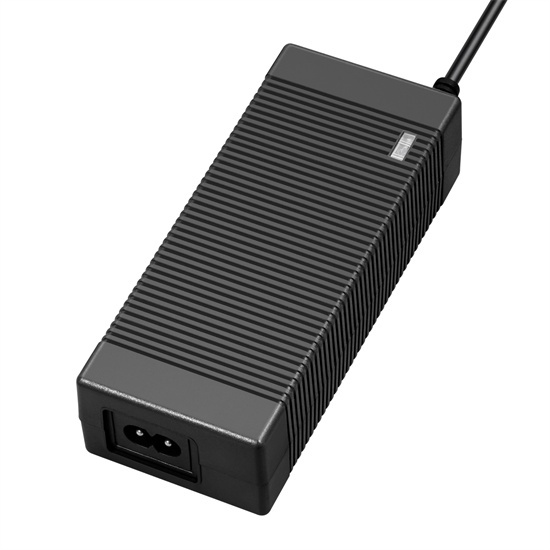

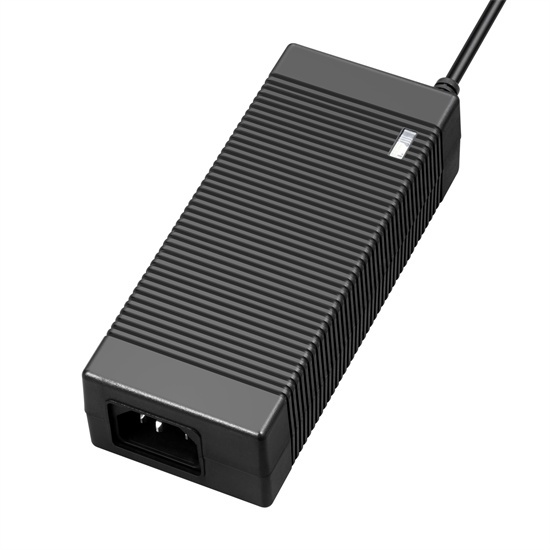

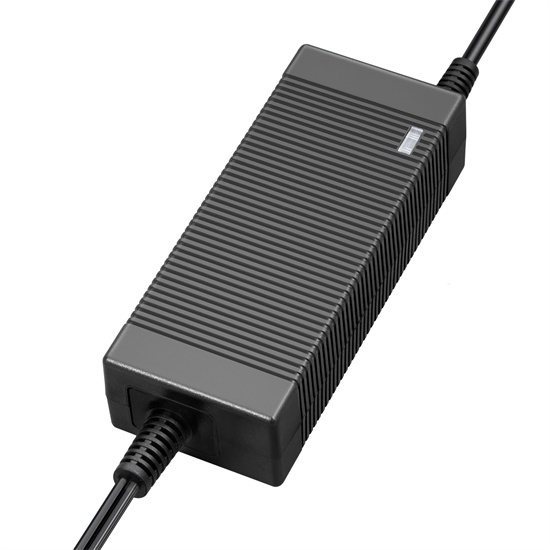

1. 12.8V 4S LFP LiFePO4 battery wall ac charger adapter 14.6V 5A:
PSE KC UL CE SAA certification 14.6V 5A LFP LiFePO4 battery charger adapter used for 4s 12.8V LiFePO4 battery pack, Emergency lighting system, golf trolley, portable power station.etc
2. Electrical Performance:
Certificated by the safety certifications below:
Certifications |
Country |
Safety Standards |
UL/CUL |
USA/CA |
UL/CSA60950-1,UL/CSA62368-1 |
LVD/GS |
Germany |
EN60950, EN62368
EN61558, EN60335 |
PSE |
Japan |
J-60950-1,J61558 |
FCC |
USA |
FCC Part 15 Sub-part B |
CE EMC |
Europe |
EN55032, EN55024,EN55020
EN61000, EN55014 |
KC |
Korea |
K60950-1 |
SAA/RCM |
Australia |
AS/NZS 60950 |
3.Input Feature:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:1.3A
Inrush Current: 60A
Efficiency higher than 87%,No-load input power dissipation 0.5W
4.Output Feature:Output 14.6V LFE LIFePO4 battery 5A wall AC charger adapter
Charging Status |
Charging Stage |
Output current |
Output voltage |
LED indicator |
Charging |
Constant Current |
5A |
8V-14.6V |
红灯 |
Constant Voltage |
5A->0.5A |
14.6V |
红灯 |
Fully charge |
Trickle Charging |
0.5A->0 |
14.6V |
绿灯 |

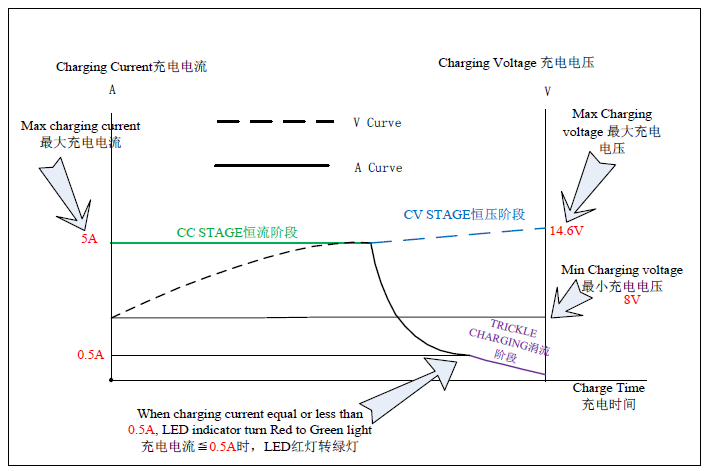

5. Charging Curve
6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)
7. Dimensions:L116*W52*H34mm
8.Other 14.6V battery chargers
MODEL |
INPUT |
OUTPUT |
VAC |
W |
V |
mA |
XSG1460300 |
100~240 |
4.4 |
14.6 |
300 |
XSG1460400 |
100~240 |
5.8 |
14.6 |
400 |
XSG1460500 |
100~240 |
7.3 |
14.6 |
500 |
XSG1460600 |
100~240 |
8.8 |
14.6 |
600 |
XSG1460700 |
100~240 |
10.2 |
14.6 |
700 |
XSG1460800 |
100~240 |
11.7 |
14.6 |
800 |
XSG1460900 |
100~240 |
13.1 |
14.6 |
900 |
XSG1461000 |
100~240 |
14.6 |
14.6 |
1000 |
XSG1461500 |
100~240 |
21.9 |
14.6 |
1500 |
XSG1462000 |
100~240 |
29.2 |
14.6 |
2000 |
XSG1462500 |
100~240 |
36.5 |
14.6 |
2500 |
XSG1463000 |
100~240 |
43.8 |
14.6 |
3000 |
XSG1463500 |
100~240 |
51.1 |
14.6 |
3500 |
XSG1464000 |
100~240 |
58.4 |
14.6 |
4000 |
XSG1464450 |
100~240 |
65.0 |
14.6 |
4450 |
XSG1464500 |
100~240 |
65.7 |
14.6 |
4500 |
XSG1465000 |
100~240 |
73.0 |
14.6 |
5000 |
XSG1465500 |
100~240 |
80.3 |
14.6 |
5500 |
XSG1466000 |
100~240 |
87.6 |
14.6 |
6000 |
XSG1466500 |
100~240 |
94.9 |
14.6 |
6500 |
XSG1467000 |
100~240 |
102.2 |
14.6 |
7000 |
XSG1467500 |
100~240 |
109.5 |
14.6 |
7500 |
XSG1468000 |
100~240 |
116.8 |
14.6 |
8000 |
XSG1468500 |
100~240 |
124.1 |
14.6 |
8500 |
XSG1469000 |
100~240 |
131.4 |
14.6 |
9000 |
XSG1469500 |
100~241 |
138.7 |
14.6 |
9500 |
XSG14610000 |
100~240 |
146.0 |
14.6 |
10000 |
XSG14611000 |
100-240 |
160.6 |
14.6 |
11000 |
9. Packing List:
14.6V 5A KC KCC listed LFP LiFePO4 battery charger adapter, exporting to the Korea.
used for the 12.8V 4S LFP battery packs.
14.6V 4A 5A lithium iron phosphate battery charger, with KC, KCC, UL, cUL, FCC, PSE, CE, GS, SAA, CCC and other safety certifications.
Suitable for charging 4S 12.8V lithium iron phosphate battery pack.
