Products > Lead Acid Battery Charger > 60V Lead-Acid battery charger 73V > UL cUL PSE CE GS SAA KC 60V20Ah Electric bike scooter lead-acid battery charger 3A
UL cUL PSE CE GS SAA KC 60V20Ah Electric bike scooter lead-acid battery charger 3A
UL cUL PSE CE GS SAA KC 60V20Ah Electric bike scooter lead-acid battery charger 3A UL cUL PSE CE GS SAA KC 60V20Ah Electric bike scooter lead-acid battery charger 3A UL cUL PSE CE GS SAA KC 60V20Ah Electric bike scooter lead-acid battery charger 3A
Product name : UL cUL PSE CE GS SAA KC 60V20Ah Electric bike scooter lead-acid battery charger 3A
Product No. : XSG7302750
←[Previous Product]
Online Inquiry         Email Us

  Details:
 1.UL PSE CE GS SAA KC 60V20Ah Electric bike scooter lead-acid battery charger 3A
UL CUL PSE CE GS SAA KC 60V Lead-acid battery 3A AC charger adapter used for 60v lead-acid battery pack, electric scooter, electric bike without a fan in it. higher efficiency and reliable

2. Electrical Performance：
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1，J61558
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024，EN55020
EN61000, EN55014
KC Korea K60950-1
SAA/RCM Australia AS/NZS 60950













3.Input Feature：
Input Voltage： 90Vac-264Vac
Rated Input Voltage： 100Vac-240Vac
Input Frequence：47Hz-63Hz
Input Current：3A
Inrush Current： 60A
Efficiency higher than 87%，No-load input power dissipation 0.5W

4.Output Feature：60V20Ah lead-acid battery ac charger adapter
Charging Status Charging Stage Output current Output voltage LED indicator

Charging		 Constant Current 3A 40V-67.2V 红灯
Constant Voltage 3A->0.3A 67.2V 红灯
 Fully charge Trickle Charging 0.3A->0 67.2V 绿灯

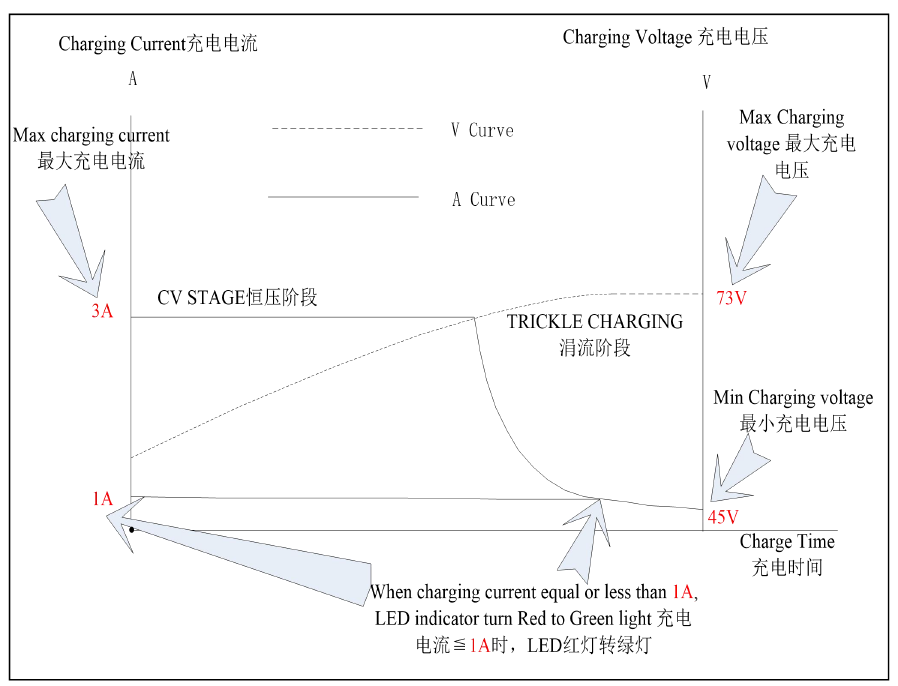

5. Charging Curve

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)

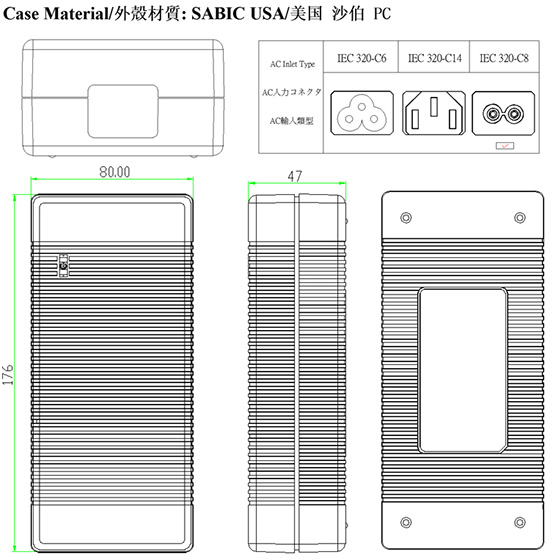

7. Dimensions：L176*W80*H47mm
