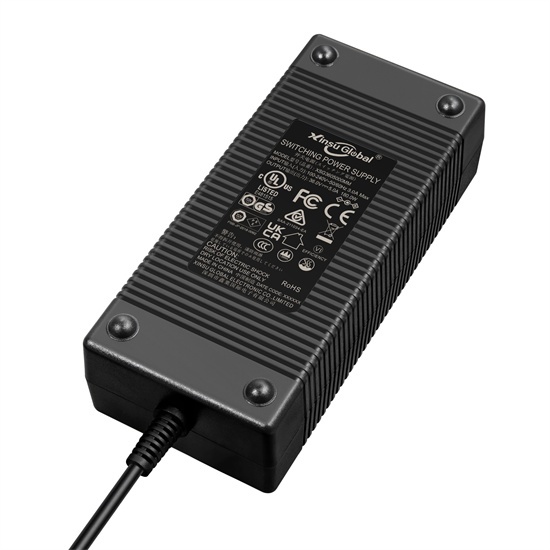

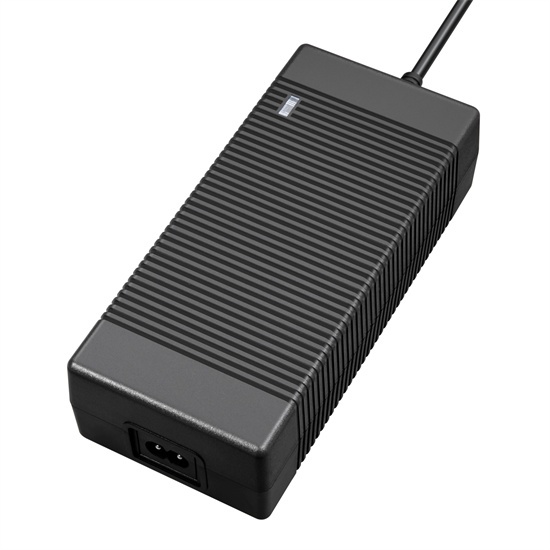

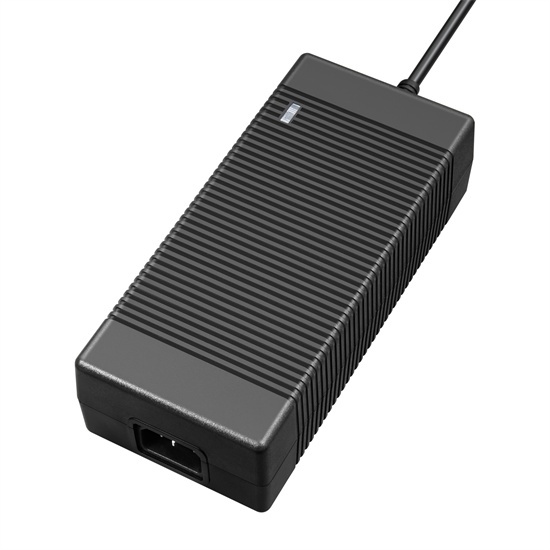

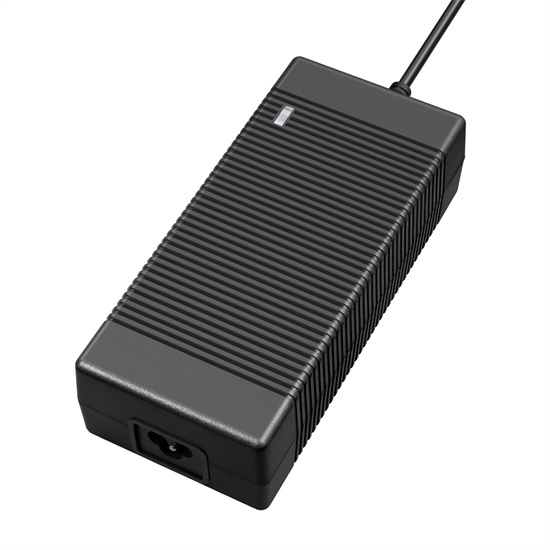

UL PSE CE GS SAA KC 16S 60V Electric bike scooter lithium ion battery charger 3A
UL PSE CE GS SAA KC 16S 60V Electric bike scooter lithium ion battery charger 3A UL PSE CE GS SAA KC 16S 60V Electric bike scooter lithium ion battery charger 3A UL PSE CE GS SAA KC 16S 60V Electric bike scooter lithium ion battery charger 3A
Product name : UL PSE CE GS SAA KC 16S 60V Electric bike scooter lithium ion battery charger 3A
Product No. : XSG6723000
←[Previous Product]
Online Inquiry         Email Us

  Details:
 1.UL PSE CE GS SAA KC 16S 60V Electric bike scooter lithium ion battery charger 3A
UL CUL PSE CE GS SAA KC 16S 60V Li-ion battery 3A AC charger adapter used for 16s lithium ion battery pack, electric scooter, electric bike without a fan in it. higher efficiency and reliable

2. Electrical Performance:
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1,J61558
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024,EN55020
EN61000, EN55014
KC Korea K60950-1
SAA/RCM Australia AS/NZS 60950













3.Input Feature:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:3A
Inrush Current: 60A
Efficiency higher than 87%,No-load input power dissipation 0.5W


4.Output Feature:16.8V10A lithium battery ac charger adapter
Charging Status Charging Stage Output current Output voltage LED indicator

Charging
Constant Current 3A 40V-67.2V 红灯
Constant Voltage 3A->0.3A 67.2V 红灯
 Fully charge Trickle Charging 0.3A->0 67.2V 绿灯

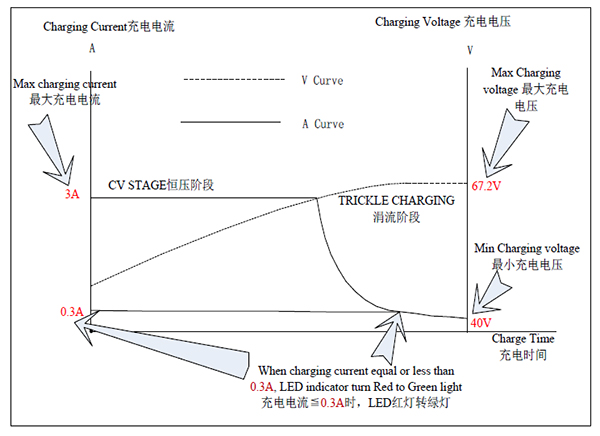

5. Charging Curve

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)


7. Dimensions:L176*W80*H47mm
