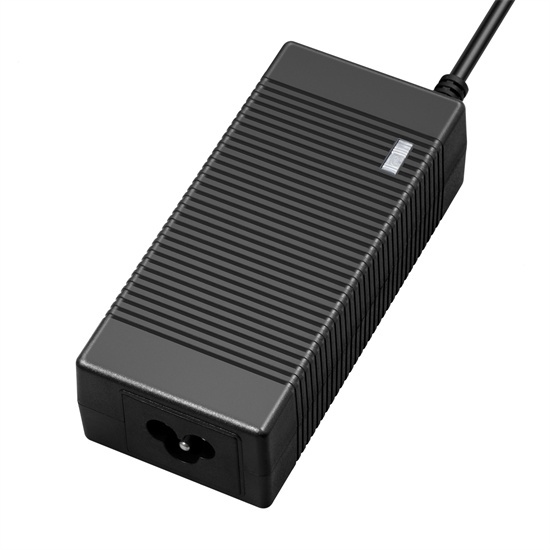

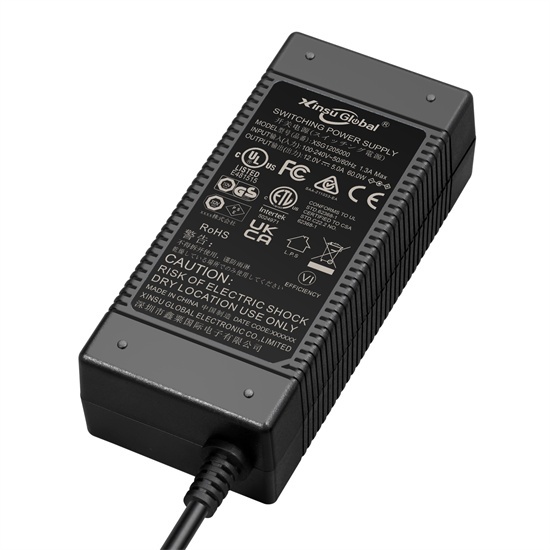

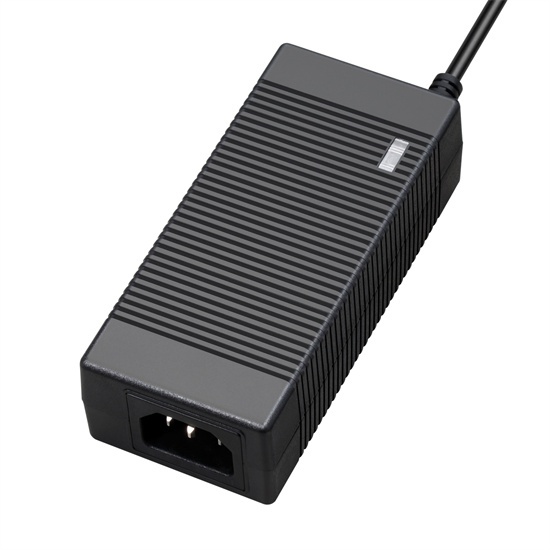

UL PSE CE GS KC SAA CCC 4S 14.8V lithium ion battery charger 16.8V 3.5A 4A
UL PSE CE GS KC SAA CCC 4S 14.8V lithium ion battery charger 16.8V 3.5A 4A UL PSE CE GS KC SAA CCC 4S 14.8V lithium ion battery charger 16.8V 3.5A 4A UL PSE CE GS KC SAA CCC 4S 14.8V lithium ion battery charger 16.8V 3.5A 4A UL PSE CE GS KC SAA CCC 4S 14.8V lithium ion battery charger 16.8V 3.5A 4A
Product name : UL PSE CE GS KC SAA CCC 4S 14.8V lithium ion battery charger 16.8V 3.5A 4A
Product No. : XSG1683500
←[Previous Product]
Online Inquiry

  Details:
 1. 16.8V 3.5A 4A D-tap lithium ion battery charger：
UL PSE CE GS KC SAA CCC 4S 14.8V lithium ion battery charger 16.8V 3.5A 4A used for 3s lithium ion battery pack, camera video, Photographic LED light.etc

2. Electrical Performance：
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1，J61558
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024，EN55020
EN61000, EN55014
KC Korea K60950-1
SAA/RCM Australia AS/NZS 60950













3.Input Feature：
Input Voltage： 90Vac-264Vac
Rated Input Voltage： 100Vac-240Vac
Input Frequence：47Hz-63Hz
Input Current：1.3A
Inrush Current： 60A
Efficiency higher than 87%，No-load input power dissipation 0.5W

4.Output Feature：Output 16.8V Li-ion battery 3.5A D-tap AC charger adapter
Charging Status Charging Stage Output current Output voltage LED indicator

Charging		 Constant Current 3.5A 10V-16.8V 红灯
Constant Voltage 3.5A->0.35A 16.8V 红灯
 Fully charge Trickle Charging 0.35A->0 16.8V 绿灯

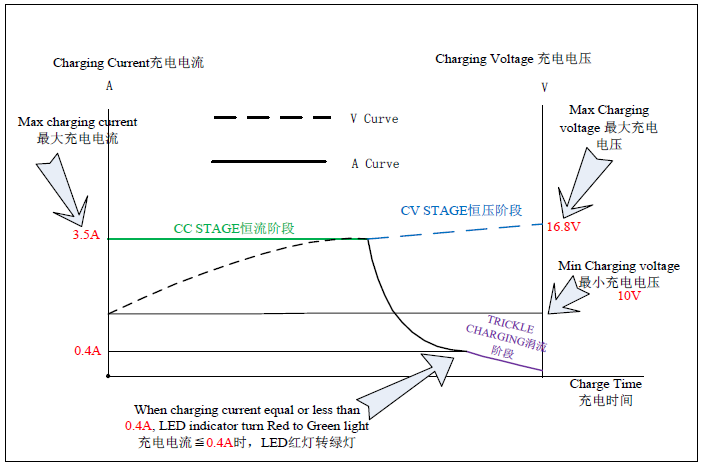

5. Charging Curve
16.8V charger
6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)


7. Dimensions：L116*W52*H34mm

8. Other 16.8V chargers
MODEL INPUT OUTPUT
VAC W V mA
XSG1680300 100～240 5.0 16.8 300
XSG1680400 100～240 6.7 16.8 400
XSG1680500 100～240 8.4 16.8 500
XSG1680600 100～240 10.1 16.8 600
XSG1680700 100～240 11.8 16.8 700
XSG1680800 100～240 13.4 16.8 800
XSG1680900 100～240 15.1 16.8 900
XSG1681000 100～240 16.8 16.8 1000
XSG1681200 100～240 20.2 16.8 1200
XSG1681500 100～240 25.2 16.8 1500
XSG1681800 100～240 30.2 16.8 1800
XSG1682000 100～240 33.6 16.8 2000
XSG1682500 100～240 42.0 16.8 2500
XSG1683000 100～240 50.4 16.8 3000
XSG1683500 100～240 58.8 16.8 3500
XSG1683750 100～240 63.0 16.8 3750
XSG1684000 100～240 67.2 16.8 4000
XSG1684500 100～240 75.6 16.8 4500
XSG1685000 100～240 84.0 16.8 5000
XSG1685500 100～240 92.4 16.8 5500
XSG1686000 100～240 100.8 16.8 6000
XSG1686500 100～240 109.2 16.8 6500
XSG1687000 100～240 117.6 16.8 7000
XSG1687500 100～240 126.0 16.8 7500
XSG1688000 100～240 134.4 16.8 8000
XSG1688500 100～240 142.8 16.8 8500
XSG1689000 100～240 151.2 16.8 9000
XSG1689500 100～240 159.6 16.8 9500
XSG16810000 100～240 168.0 16.8 10000
XSG16811000 100-240 184.8 16.8 11000

9. Factory and workshop

Xinsu Global


10. Production test equipment



11. Producton process
production process
11. Exhibitions

Xinsu Global 16.8V lithium battery chargers with D-tap connectors, they are special used for the studio LED lighting, studio camera battery packs. they have the advantages of high voltage accuracy, multi protections to make sure charge the battery faster and safer. Xinsu Global is the reliable supplier to global clients with universal safety certification, just leave messages to our sales engineers
16.8V charger
16.8V 3.5A charger
16.8v 4a charger
Li-ion battery charger
